How to use Autel Autolink AL619 to read code

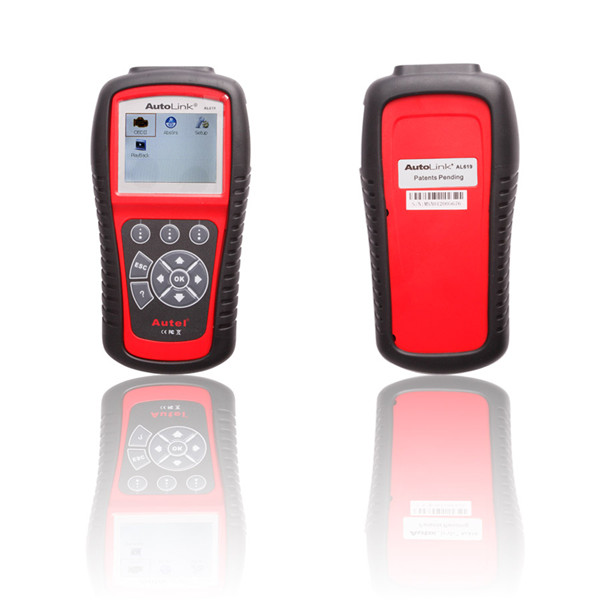

AutoLink AL619 is built to help you determine why the Malfunction Indicator Light or  the ABS / SRS warning light is on. Featuring ABS/SRS system auto diagnosis,  TFT color display, built-in speaker, troubleshooter code tips, the tool  is truly ultimate in power and affordability. And in this article i wil  share you how to use Autel Autolink AL619 to read code on your vehicle.

1) Use UP/DOWN scroll button to select Read Codes from

Diagnostic Menu and press OK button. (Figure 5.3 )

2) Use the UP/DOWN scroll button to select Stored Codes,

Pending Codes or Permanent Codes from the Read Codes

menu and press the OK button. (Figure 5.4 )

If there is not any Diagnostic Trouble Code, the display indicates

“No (pending) codes are stored in the module!” Wait a few

seconds or press any key to return to previous screen.

NOTE: Permanent Codes function is available for merely

vehicles supporting the CAN protocols.

3) View DTCs and their definitions on screen.

4) If more than one DTC is found, use the UP/DOWN scroll

button to check all the codes.If retrieved DTCs contain any manufacturer specific or enhanced.(http://www.car-auto-repair.com)

codes, a “Manufacturer specific codes are found! Press any key

to select vehicle make!” message comes up prompting you to

select vehicle manufacturer to view DTC definitions. Use

UP/DOWN scroll button to select manufacturer and then press

OK button to confirm.

If the manufacturer of your vehicle is not listed, use the

UP/DOWN scroll button to select Other and press the OK

button.
