SUBARU FreeSSM V1.2.5 OBD2 Cable diagnostic tool software installation

06 Dec

This is the instruction on how to install / make the SUBARU FreeSSM V1.2.5 software and OBD2 diagnostic Cable work.

Operating system:

Windows XP, Vista and Windows 7

Language:

English, German

Steps to make the software and adapter work
Step 1 – Plug in your SUBARU OBD2 Cable, let your computer find the drivers automatically.

If not the cables usually come with a CD with the drivers, use this.

If not do some searching on the internet.

It really depends on which cable you get.

Ps. The OBDII cable from uobd2 required no setup, plugged in, found, done. Works on Windows XP, Vista and 7 OS.

Step 2 – Install the software

On the main screen go to Preferences

On the drop down: Serial Port

Select which COM port your adapter is on

If you have no idea with I am talking about:

On your keyboard hold the windows button and push Pause/Break

Click Device Manager

Select Ports (COM & LPT)

Your adapter should be listed here

Right click the adapter, select Properties

Under Port Settings, Advanced you can see which port it is on, you can change this to another # if you want.

This path may be different depending on which OS you use.

Step 3 – Plug into the OBD II connector with the key on and “Test Diagnostic Interface” under Preferences.

If it all checks out you are good to go.

Software:

Here are some screenshots of FreeSSM V1.25 software.

Click on either Engine or Transmission

Preferences

ECU Capabilities

Codes

Here in the Measuring blocks you can click the + sign and select what parameters you want to view real time data from.

Select as many parameters as you want.

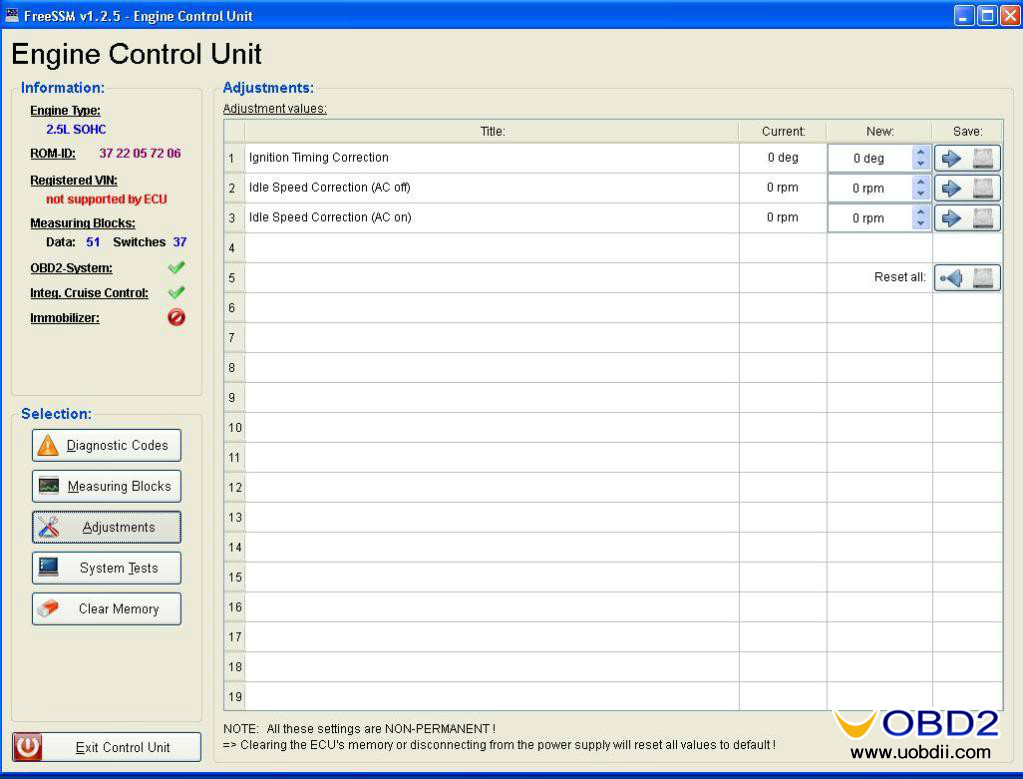

Adjustments

Functional Tests, you have to connect the green connector under the dash for this to work.

TCU Capabilities

Codes

Measuring Blocks

Adjustments

If you look closely there is 1 parameter that have been changed.
